Supplementary tests

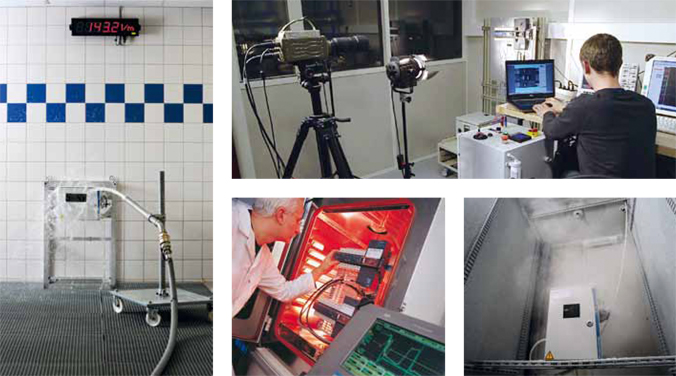

Several supplementary tests can be carried out in order to fulfill standards requirements. We check equipment performance in terms of safety, resistance to harsh environments, fireproofing, etc.


  • Endurance without current with various operation means: rotary, toggle, motor drive, coils,
  • Dielectric tests:
    • up to 12 kV 50 Hz,
    • up to 5 kV 60 Hz,
    • up to 6 kV DC.
  • Impulse test 1.2 μs / 50 μs up to 20 kV,
  • Protection against water tests for enclosures: IPx1 to IPx6 and 4, 4X type (240 l / min flow),
  • Protection against dust tests IP5x and IP6x,
  • Protection against access to hazardous parts and against solid foreign objects IP1x to IP4x,
  • Secureness and pull-out tests of cable connections,
  • Glow wire test, pressure ball test,
  • Environmental tests: vibration, climatic chambers, etc.


Supplementary tests are necessary to complete a full compliance with standards such as IP testing, mechanical movements analysis, dielectric tests, etc.
